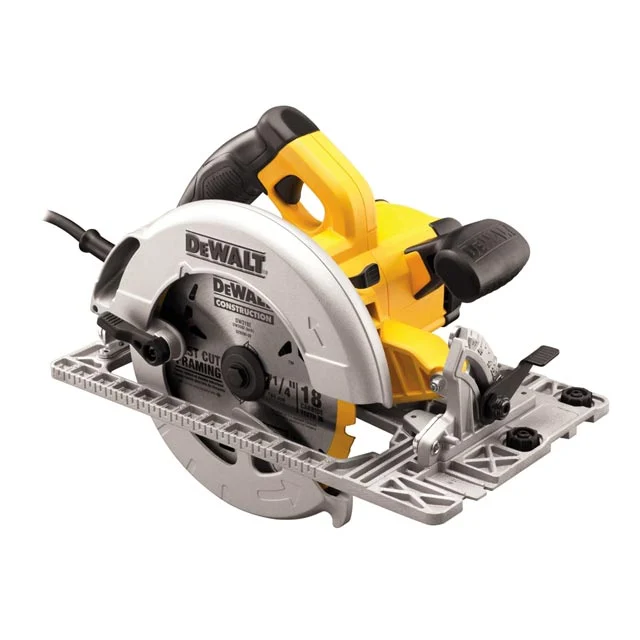

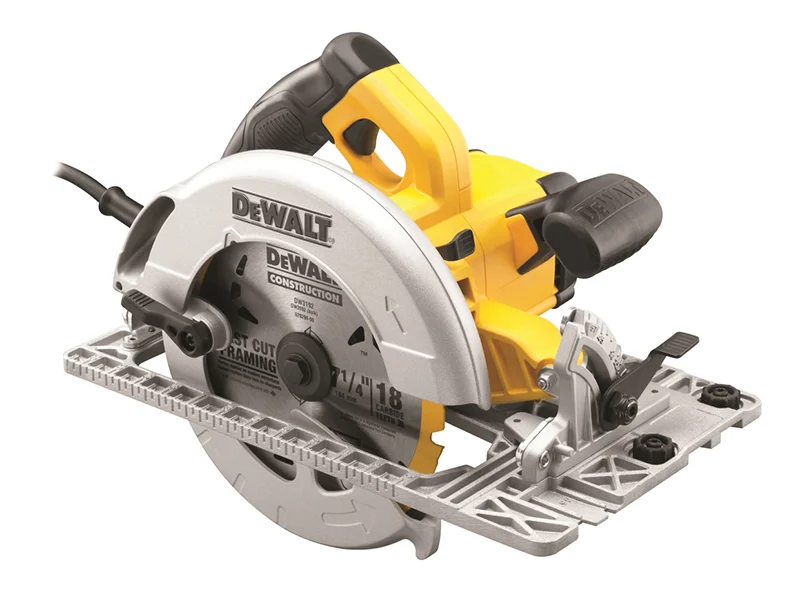

The DeWalt DWE576K Precision Circular Saw is ideal for general purpose ripping, cross-cutting and bevelling on wood and other construction materials. Its high torque motor offers durability and power for cutting job site and joinery materials. The guide rail is compatible for quick and easy use with the DeWalt guide rail system and the additional handle allows safe two-handed work.

The Circular saw allows variable bevel adjustment to 57°. A protection hood provides up to 95% sawdust extraction. It has optimum balance for safe, fatigue-free operation.

Applications:

Ripping of sheet material.
Cutting large diameter timber.
Cutting wood with the guide rail system.
General construction applications.
Bevelled cuts up to 57mm.

Specifications:

Power Input: 1,600 Watts.
Power Output: 1,000 Watts.
No Load Speed: 5,200/min.
Blade Diameter 190 mm.
Blade Bore: 30 mm.
Bevel Capacity: 57°.
Max. Depth of Cut at 90º: 61 mm.
Max. Depth of Cut at 90º (with guide rails): 57 mm.
Max. Depth of Cut at 45º: 49 mm.
Max. Depth of Cut at 45º (with guide rails): 44 mm.
Weight: 4.0 kg.
Length: 355 mm.
Height: 245 mm.

Supplied with:
Precision 24 tooth saw blade.
Rip fence.
Blade spanner.
Heavy-duty carrying case.
Dust extraction spout.

Voltage: 110 Volt.
