TREND AnyDoor Modular Hinge Jig

Fully-adjustable, modular routing jig designed to quickly and accurately recess square and 10mm radius hinges in timber doors & frames. Accommodates both full-height (1981mm/2040mm) and custom smaller doors.

Features

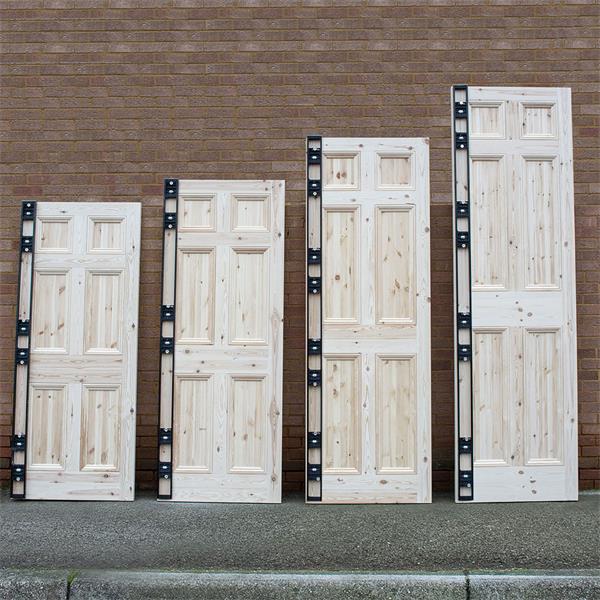

• Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors. Expansion rails are available for doors larger than 2040mm (6’8”).
• Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.

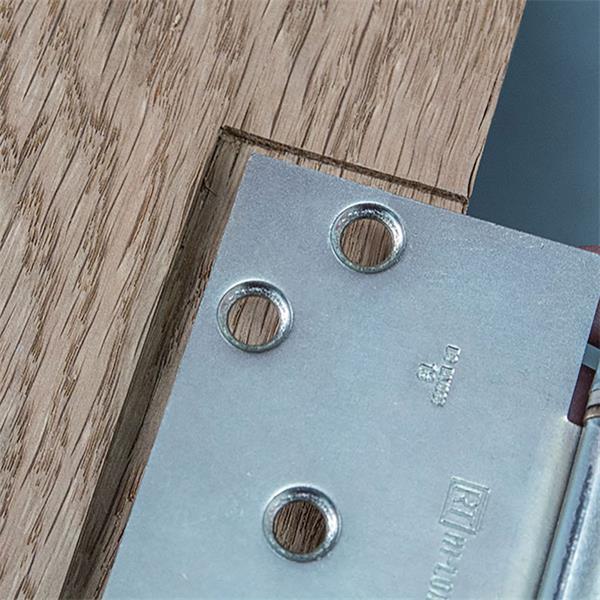

• Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles.
• Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability.
• Tough Carry Bag stores pre-built jig sections to minimise assembly time.
• Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
• Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom).
• Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
• 3.0mm (1/8”) Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
• 25mm (1”) Rail Depth allows jig to be used against fixed door stops.
• Ideal for bespoke new door and replacement door installations.
• Installs hinges in both Door and Frame without adjusting the jig.

Specifications

• Compatibility Compatible with most 1/4″ routers.
• Model Name Anydoor
• Model No H/JIG/D6
• Product Height 75 mm
• Product Length 1956 mm
• Product Type Hinge Jig
• Suitable Material Thickness 16-51 mm
• Total Product Weight 4.88 kg

Applications:

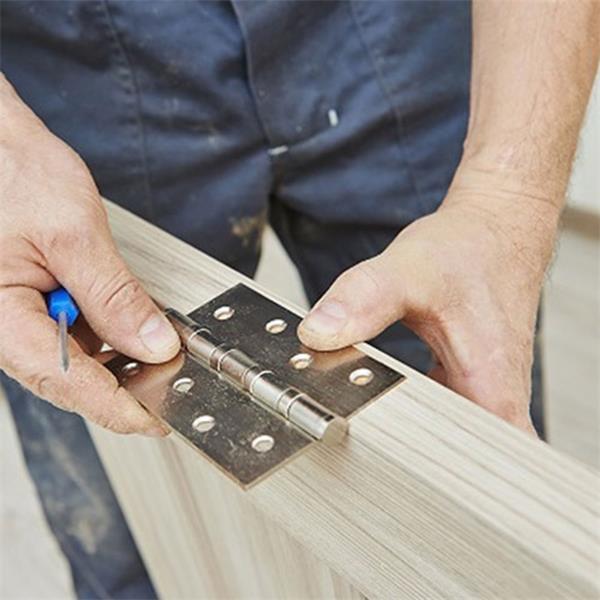

• Installing hinges in new timber doors and frames
• Replacement door installations where hinge positions must match an existing frame
• Routing hinge recesses in door frames
• Routing hinge recesses in door edges
• Bespoke joinery projects with custom-sized doors
• Batch hinge routing in joinery workshops or door manufacturing
• Installing square or 10 mm radius hinges
• Refurbishment and renovation work replacing interior doors
• Adjustable hinge positioning for non-standard hinge layouts

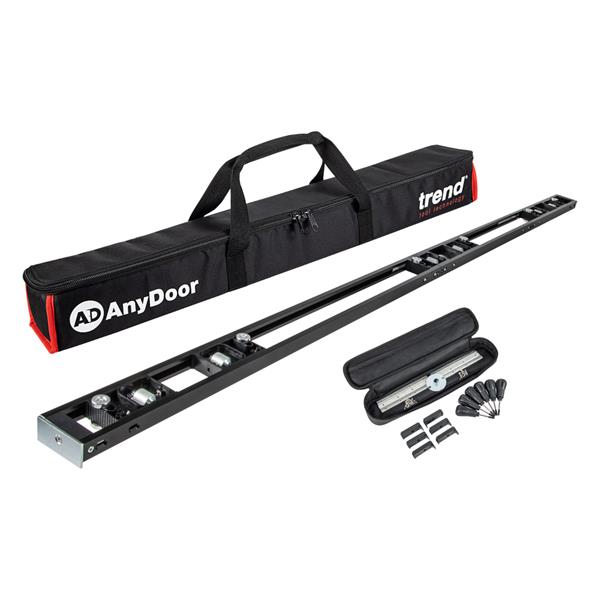

Includes:

• 1’6″ Rails (x2)
• 2′ Rails (x2)
• 3′ Rails (x4)
• End Blocks
• Hinge Blocks (x6)
• Connectors (x6)
• Screws (x24)
• Bradawls (x6)
• GB160 Guide Bush
• Carry Bag with Accessory Pouch
